arm Cuauhtémoc, Mexico


General
Builder Astilleros Celaya S.A.
Laid down 1981
Launched 1982
Commissioned 1982
Name Cuauhtémoc
Owner Mexican Navy
CHARACTERICTICS
Tonnage 1.755(GRT)
Displacement 1.800t
Lenght 90,5 meter, 297 feet
Beam 12 meter, 39,3 feet
Draft 5,2 meter, 17 feet
Mastheight 46,2 meter, 151,5 feet
Sailarea 2.368 SQ meter
25.489 SQ foot
MMSI 345186001
IMO 8107505
Call sign XCBF
Cuauhtemoc

All drawings are available in six languages:Dutch, English, French, German, Portuguese and Spanish

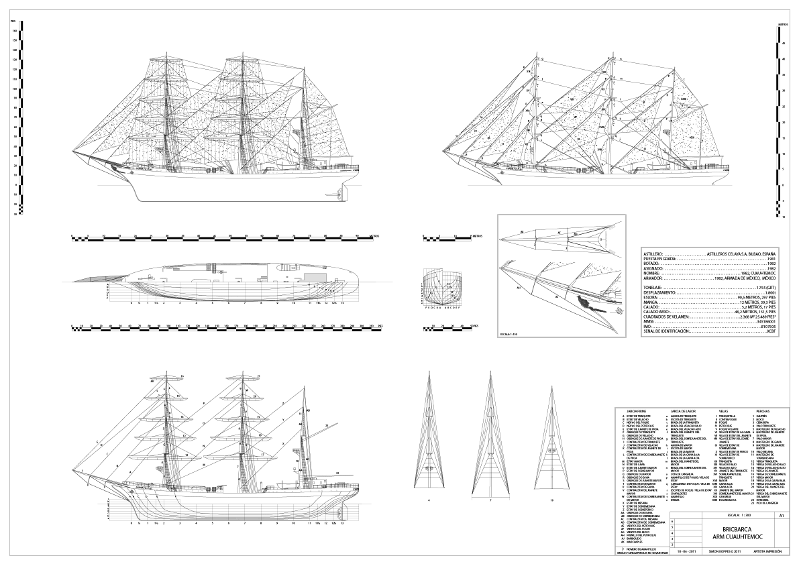

Cuauhtemoc
Enlarge
A1 841 x 594 mm
scale 1:300

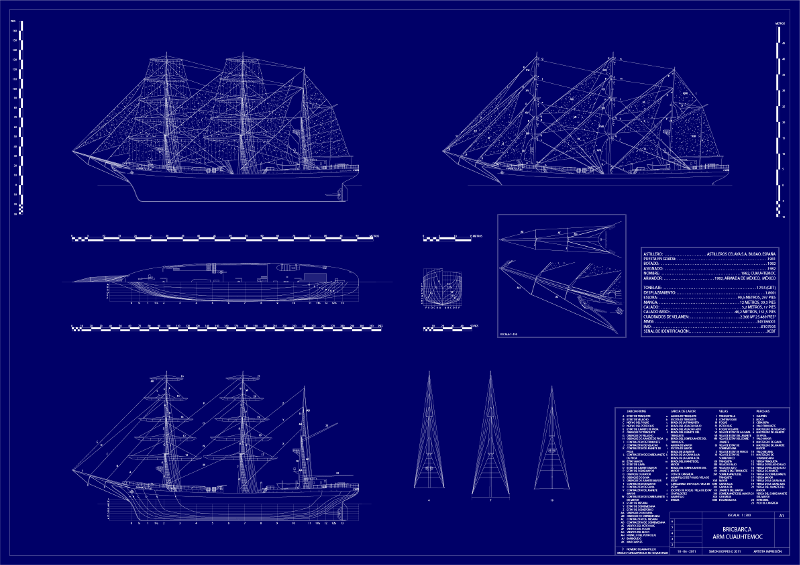

Cuauhtemoc
Enlarge
A1 841 x 594 mm
scale 1:300

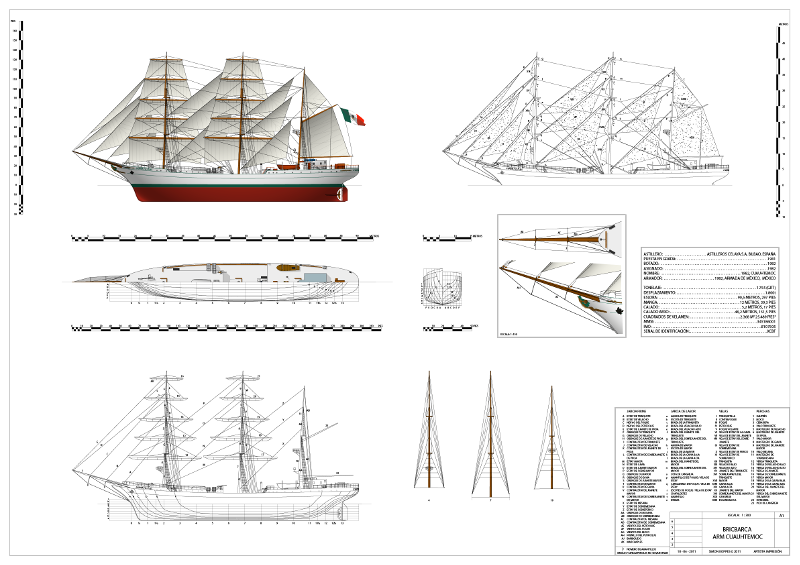

Cuauhtemoc
Enlarge
A1 841 x 594 mm
scale 1:300

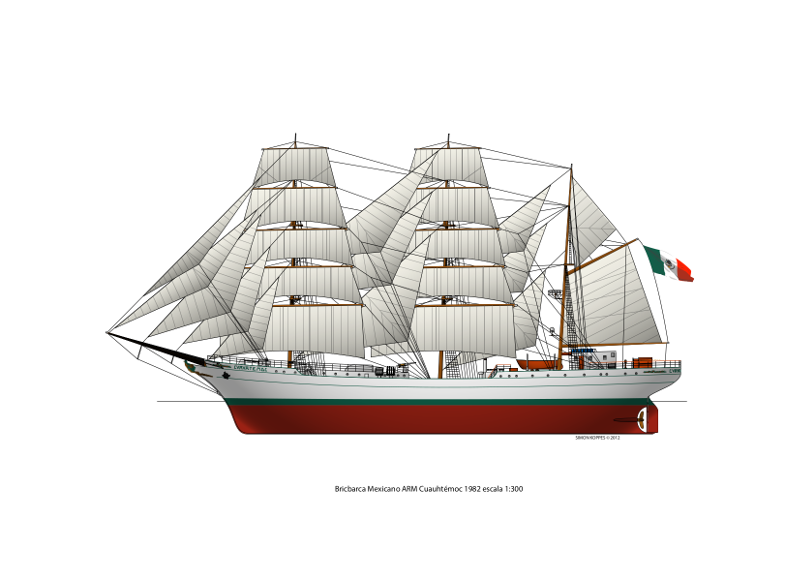

Cuauhtemoc
Enlarge
A3 420 x 297 mm
scale 1:300
