ARA Libertad, Argentina


General
Builder A.F.N.E. Astilleros
Navales
Laid down 1953
Launched 1956
Commissioned 1960
Name ARA Libertad
Owner Argentinian Navy
CHARACTERICTICS
Tonnage 3.025(GRT)
Displacement 3.765t
Lenght 103,7 meter, 340 feet
Beam 14,3 meter, 47 feet
Draft 6,6 meter, 21,6 feet
Mastheight 49,8 meter, 163,3 feet
Sailarea 2.643 SQ meter
28.449 SQ foot
MMSI 701000001
IMO 6125398
Call sign LOLD
Libertad

All drawings are available in six languages:Dutch, English, French, German, Portuguese and Spanish

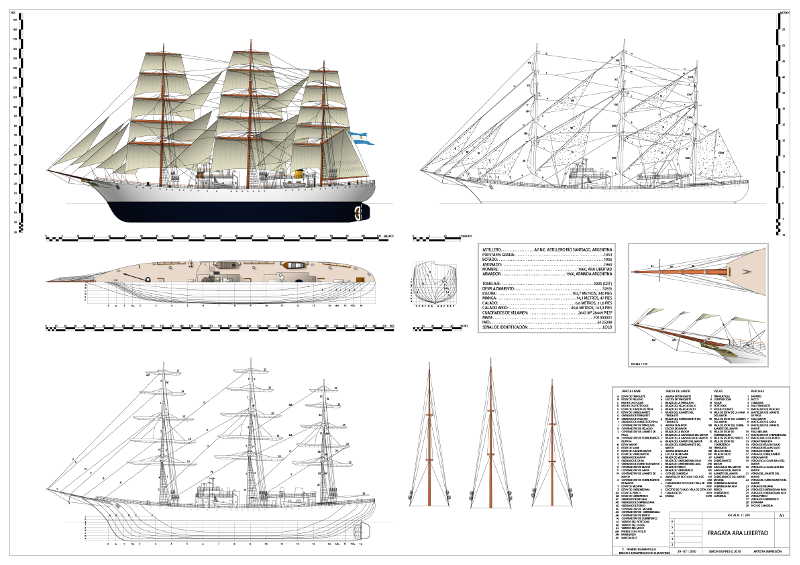

Libertad
Enlarge
A1 841 x 594 mm
scale 1:300

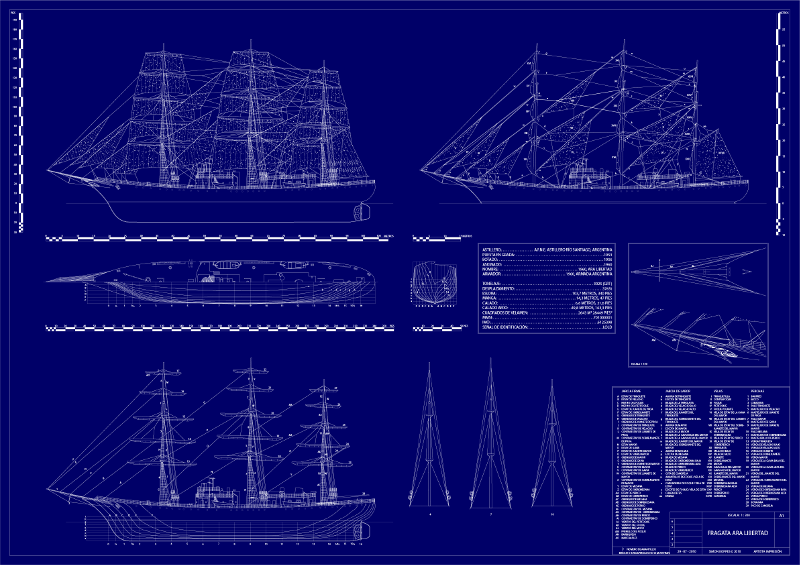

Libertad
Enlarge
A1 841 x 594 mm
scale 1:300

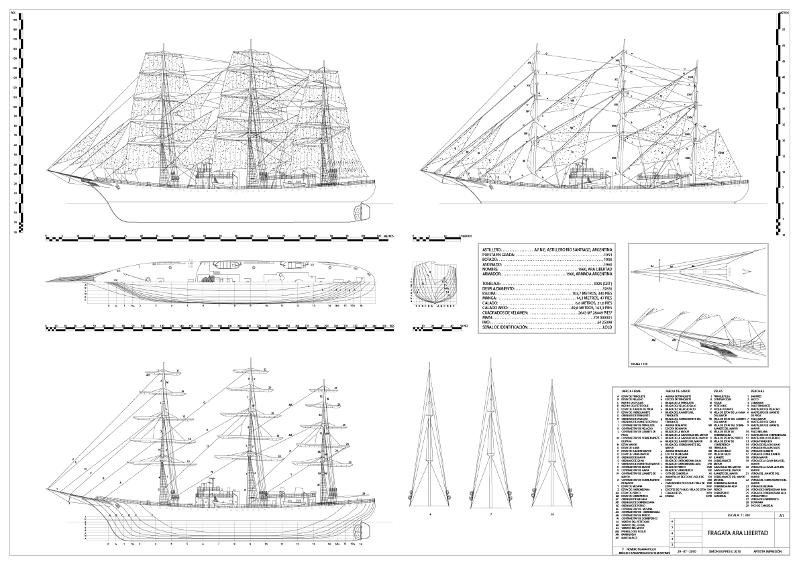

Libertad
Enlarge
A1 841 x 594 mm
scale 1:300
Libertad
Enlarge
A3 420 x 297 mm
scale 1:300
