Sagres, Portugal


General
Builder Blohm & Voss
Laid down 1937
Launched 1937
Commissioned 1938
Name Albert Leo Schlageter
Owner German Navy
Name Albert Leo Schlageter
Second owner US Goverment
Name Guanabara
Third owner Brazilian Navy
Name Sagres
Fourth owner Portuguese Navy
CHARACTERICTICS
Tonnage 1.550(GRT)
Displacement 1.940t
Lenght 89,5 meter, 293,6 feet
Beam 12 meter, 39,4 feet
Draft 6,2 meter, 20,3 feet
Mastheight 45 meter, 147,6 feet
Sailarea 1.979 SQ meter
21.301 SQ foot
MMSI 263141000
IMO Not available
Call sign CTEC
Sagres

All drawings are available in six languages:Dutch, English, French, German, Portuguese and Spanish

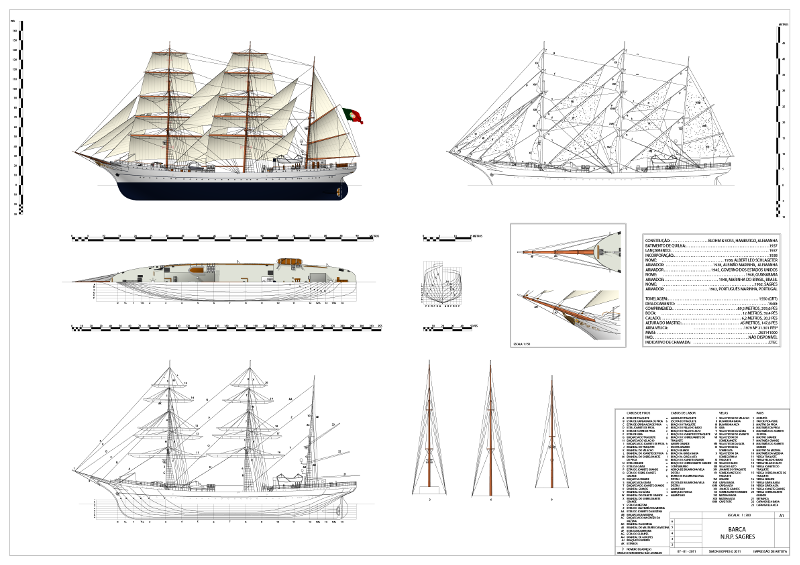

Sagres II
Enlarge
A1 841 x 594 mm
scale 1:300

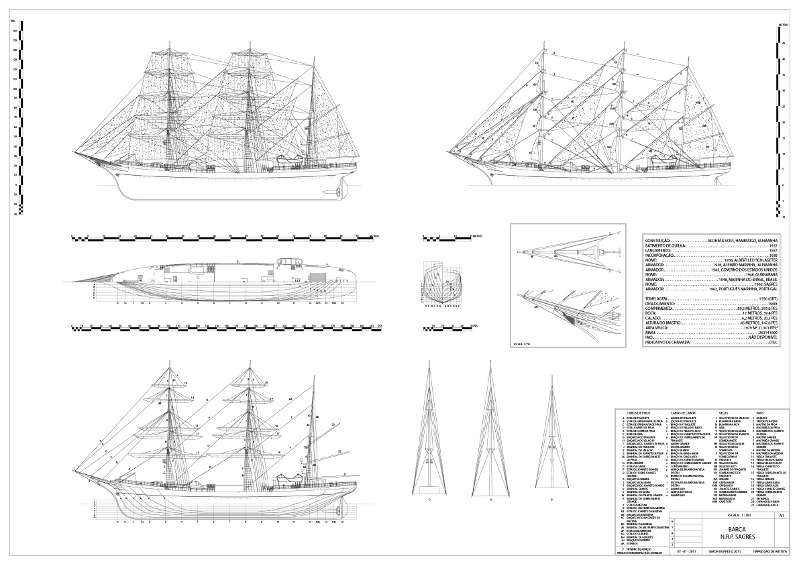

Sagres II
Enlarge
A1 841 x 594 mm
scale 1:300
Sagres II
Enlarge
A1 841 x 594 mm
scale 1:300

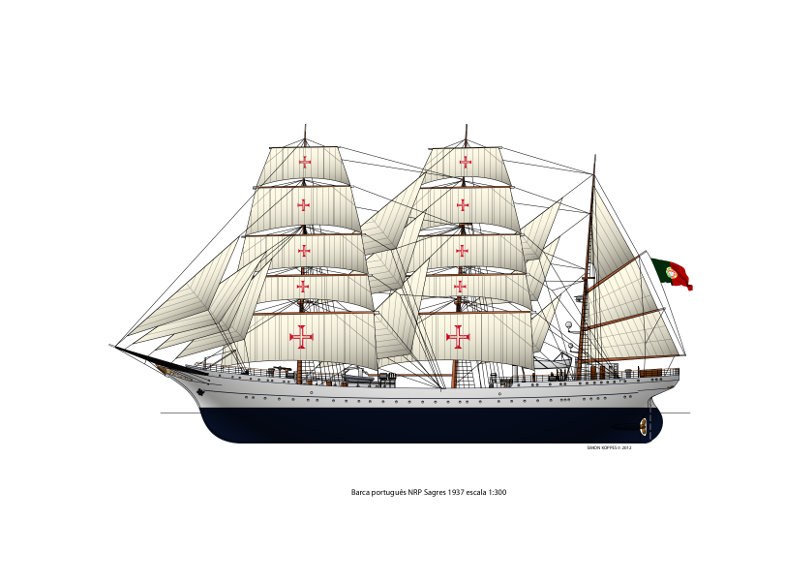

Sagres II
Enlarge
A3 420 x 297 mm
scale 1:300
